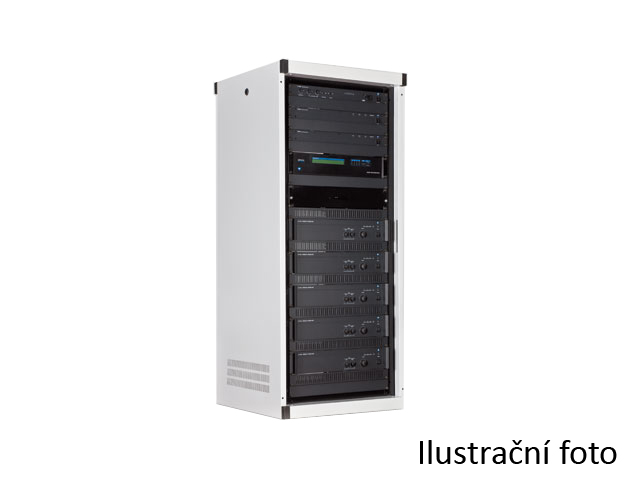

19” Steel Rack 15 U with Braked Wheels, Detachable Side and Rear Panels, Cable Outputs at the Base, 600×800×600 mm, 32 kg, Grey • The CR 2600 series rack enclosures are specifically designed to accommodate all RCF 19" rack standard components. • These rack enclosures are high-temperature bake-painted using epoxy powders for long-lasting durability, scratch resistance, and protection against atmospheric agents. • The CR 2600 SERIES rack enclosures feature a basic structure that can be easily and quickly assembled by securing four steel uprights to the upper and lower panels. Features: • Compliant with the IEC 297-2 dimensional standard • Constructed with steel painted in RAL 7035 light grey • IP 30 protection level • Lower door and side panels are designed to simplify wiring operations for easy insertion and connection of components • Rack earthing meets current safety regulations • Front doors are available for added protection of installed components • Equipped with 4 wheels, including two swivel wheels with a pedal lever braking system General specifications: • Type: 19" Rack cabinet on wheels • Unit: 15 U • Maximum load: 105 / 231.48 Kg/Lbs • Thermal Dissipation at 25 °C: 230 W • Thermal Dissipation at 35 °C: 140 W • Color: RAL 7035 • Protection level: IP 30 • Air flow volume ventilation kit: 300 m3/h Door section: • Model: AK 2615 (Code 173.60.028) • Type: Frontal door with safety glass • Weight: 7 / 15.43 Kg/Lbs Physical specifications: • Height: 800 / 31.50 mm/inch • Width: 600 / 23.62 mm/inch • Depth: 600 / 23.62 mm/inch • Net Weight: 26 / 57.32 Kg/Lbs Shipping information: • Package height: 800 / 31.50 mm/inch • Package width: 630 / 24.80 mm/inch • Package depth: 630 / 24.80 mm/inch • Shipping Weight: 32 / 70.55 Kg/Lbs
