Rane – RAD22

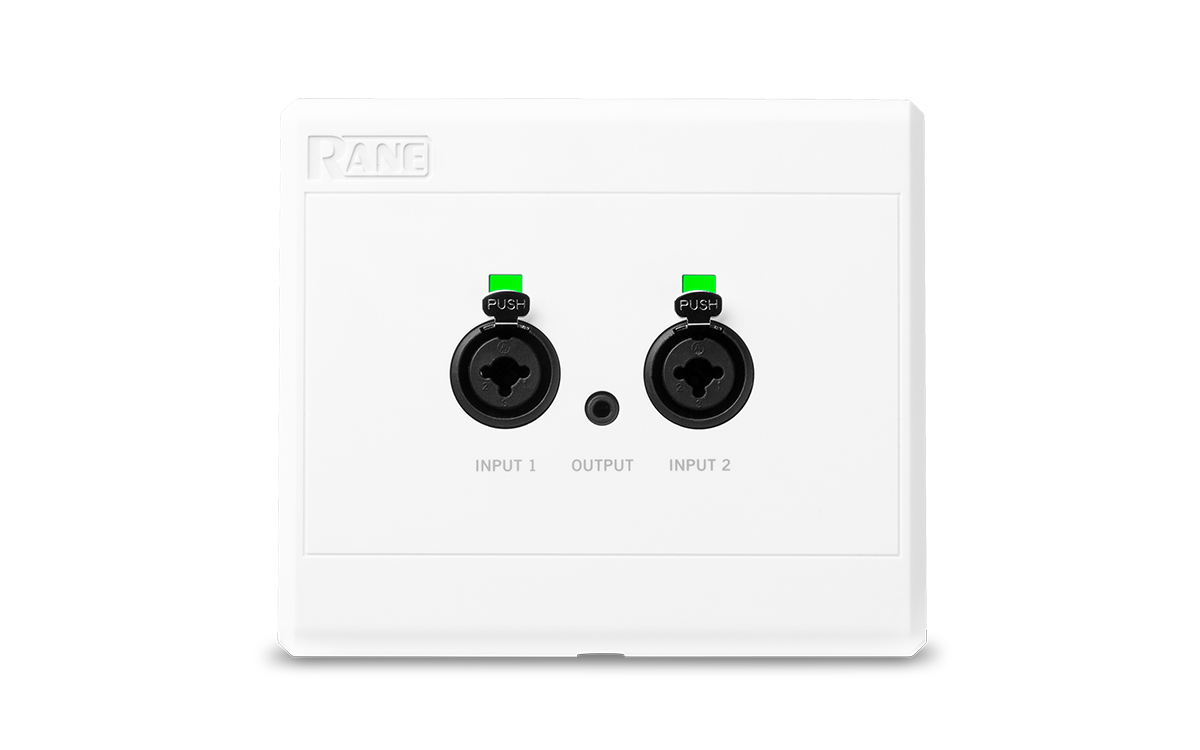

The RAD22 brings flexibility to fixed installations built around Rane DSP systems. It features two microphone inputs in the form of combo Jack/XLR connectors and a 3.5 mm output for monitoring, recording, and system expansion. The RAD22 is equipped with smart muting in case of sudden cable disconnection (even with 48V phantom power). Connection is made via Cat5e (and higher), with a maximum cable length of 150m from the main rack.

Features:
• 2x XLR/TRS combo connectors, automatic switching between line and microphone inputs
• Smart muting prevents sudden audio bursts in the system during switching or abrupt cable disconnections
• Line 3.5mm output for recording, headphone monitoring, or additional system branching

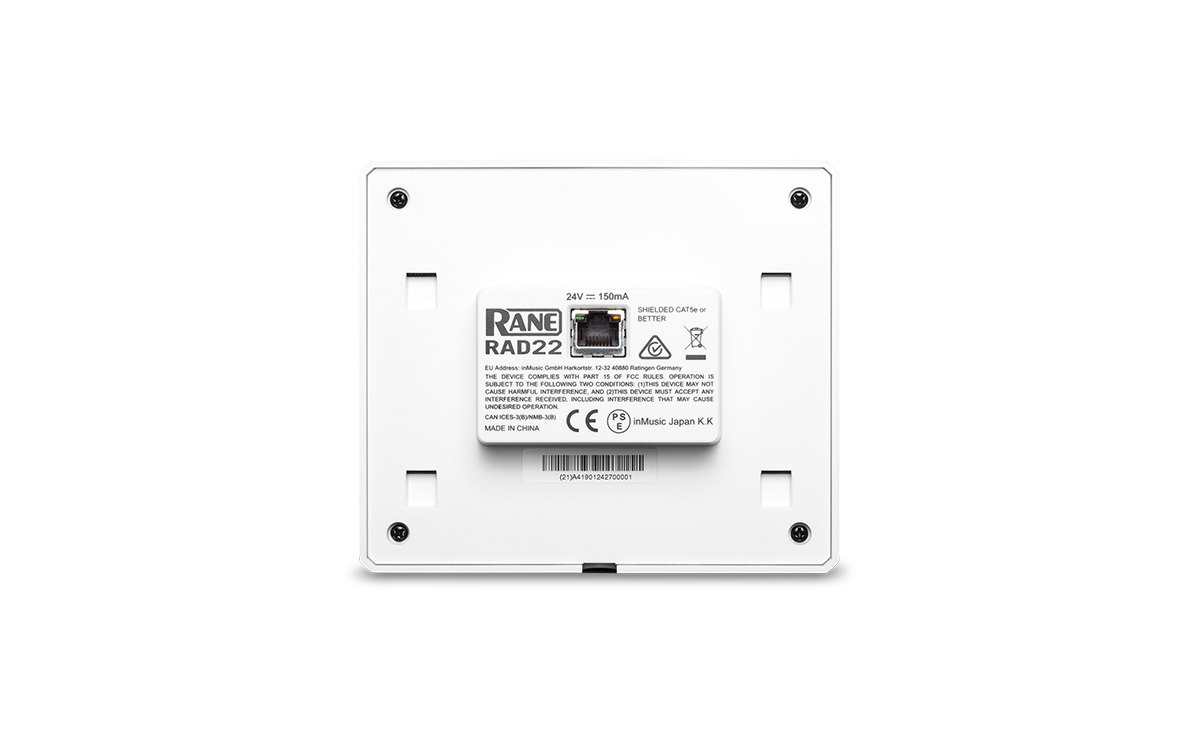

• RJ45 connector for connection to Rane multiprocessors
• Standard enclosure for US, UK, and EU dimensions
• Isolated circuitry eliminates hum in case of different grounding of connected devices
• Enhanced codec for seamless audio transmission
• Complements RAD16z
