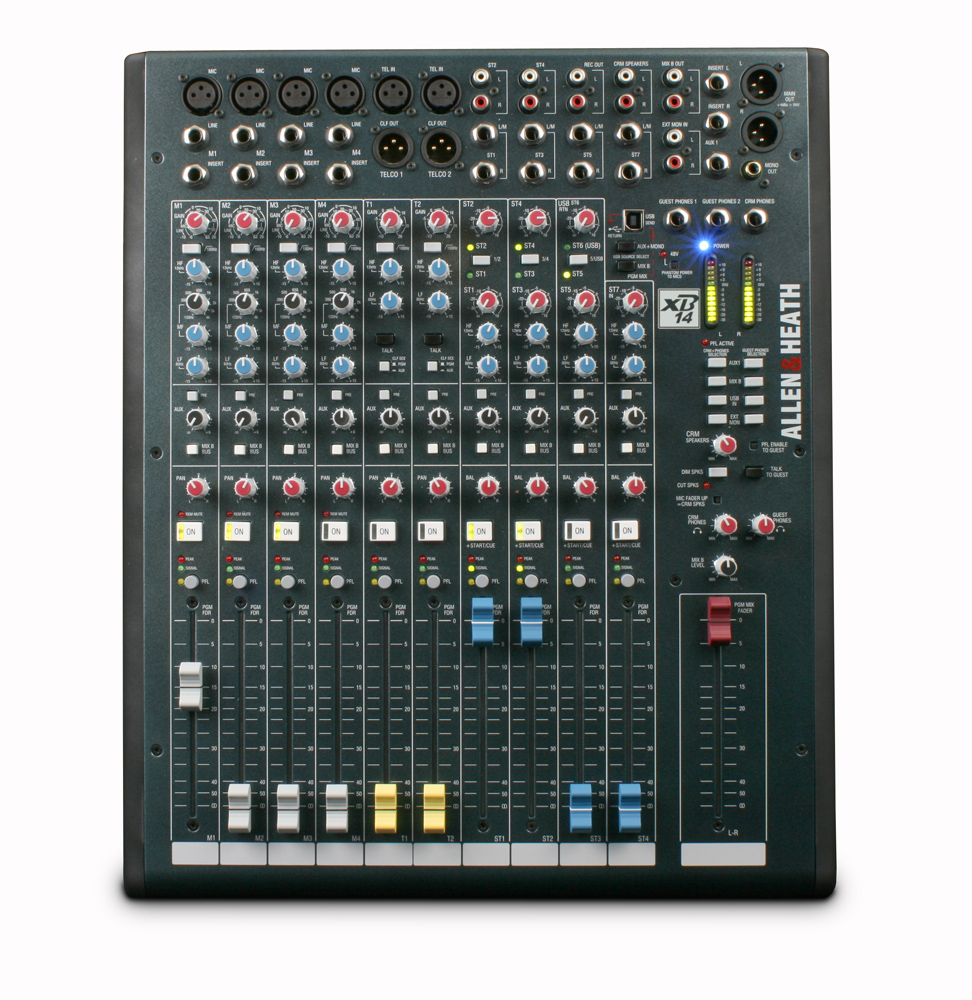

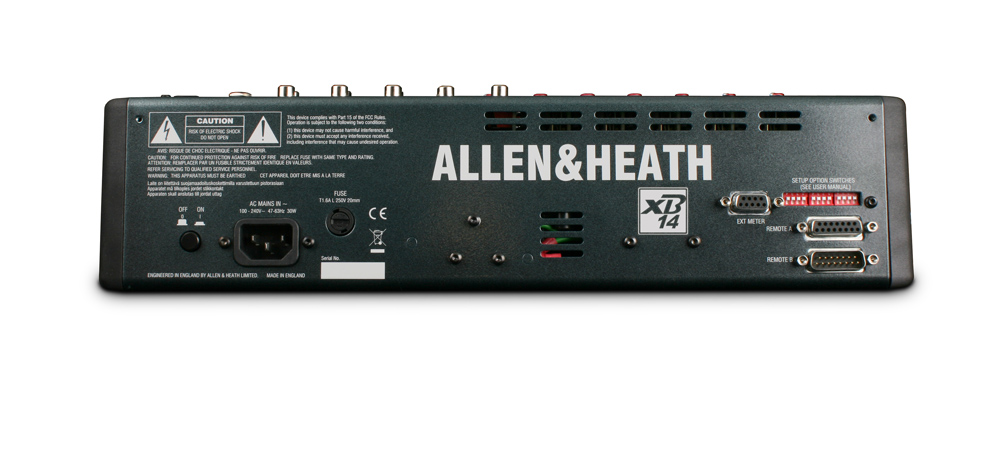

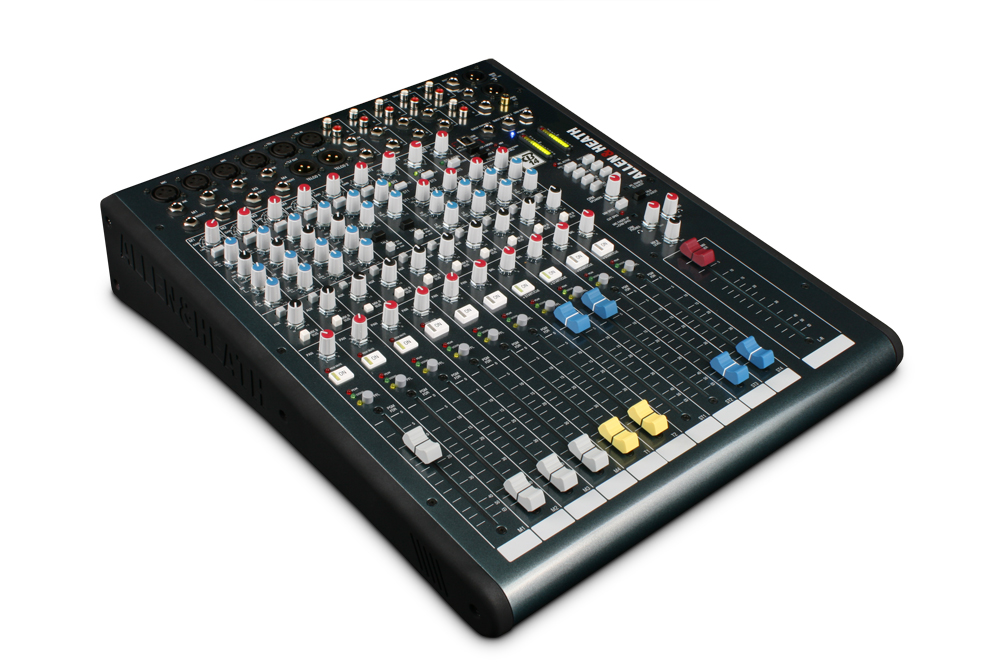

Allen&Heath XB-14 • A mixing console designed for radio broadcasting studios • 4x microphone/line inputs with inserts • 4x line stereo inputs • 2x Telco input/output • USB input/output • 3x headphone outputs • main outputs 2x XLR with inserts, 1x AUX, mono RCA output, RCA stereo output for monitors • fader start function on mono channels, start/cue on stereo channels • dimensions 465x98x385 (mm) • weight 7.5 kg • XB-14 is designed for a wide range of applications, from small radio and internet stations to larger multi-room studios, hospital radios, school and community radios. The XB-14 is equipped with features specific to radio broadcasting, including telephone communication with callers, fader "start" logic on microphone channels for controlling external devices, internal automatic dimming of monitor outputs, stereo start/cue output for controlling CD players, separate headphone output for mix and guest headphones, communication bus, and much more. Microphone/line preamps: The XB-14 features dual preamp arrangements with gain control. The XLR input gain range is extensive at 69dB and evenly distributed throughout the control potentiometer range. The second part of the preamp with a Jack connector is designated for connecting line signals without the need for any attenuation element (pad). EQ: The XB-14 is equipped with a 3-band equalizer on each mono input and a 2-band EQ on Telco and stereo channels. AUX bus: The XB-14 includes one auxiliary bus that can be used for external processing, effects, recording, and monitoring. MIX B: A separate stereo bus is intended for independent recording of the main mix or for a clean source of selected channels. Remote Control: Monophonic microphone/line faders can utilize the start function to control external devices or automatically mute the speaker outputs to eliminate feedback in a closed room. Stereo channels have start/cue logic for controlling external devices such as CD players. There is also the option to mute monophonic inputs using an external switch. USB: The XB-14 offers a USB sound card for stereo playback/recording without the need for driver installation on PC/Mac. • Monitoring/clean bus • 3-band EQ on mono channels • 4x microphone/line input, 4x stereo input • 2-band EQ on Telco/stereo channels • Fader start logic on mono channels • Start/cue logic on stereo channels • 2x Telco (telephone communication channel) • USB sound card for PC/Mac • Separate headphone outputs (1x main mix, 2x for guests) • Vertically mounted PCBs, rotary knobs secured with nuts to the front panel • AUX and separate stereo bus for processing/recording • Output to control room with automatic dimming function • Remote dimming for microphone channels • Balanced main outputs with inserts • LED signal and peak input indicators • Dimensions 465x98x385 (mm) • Weight 7.5 kg
