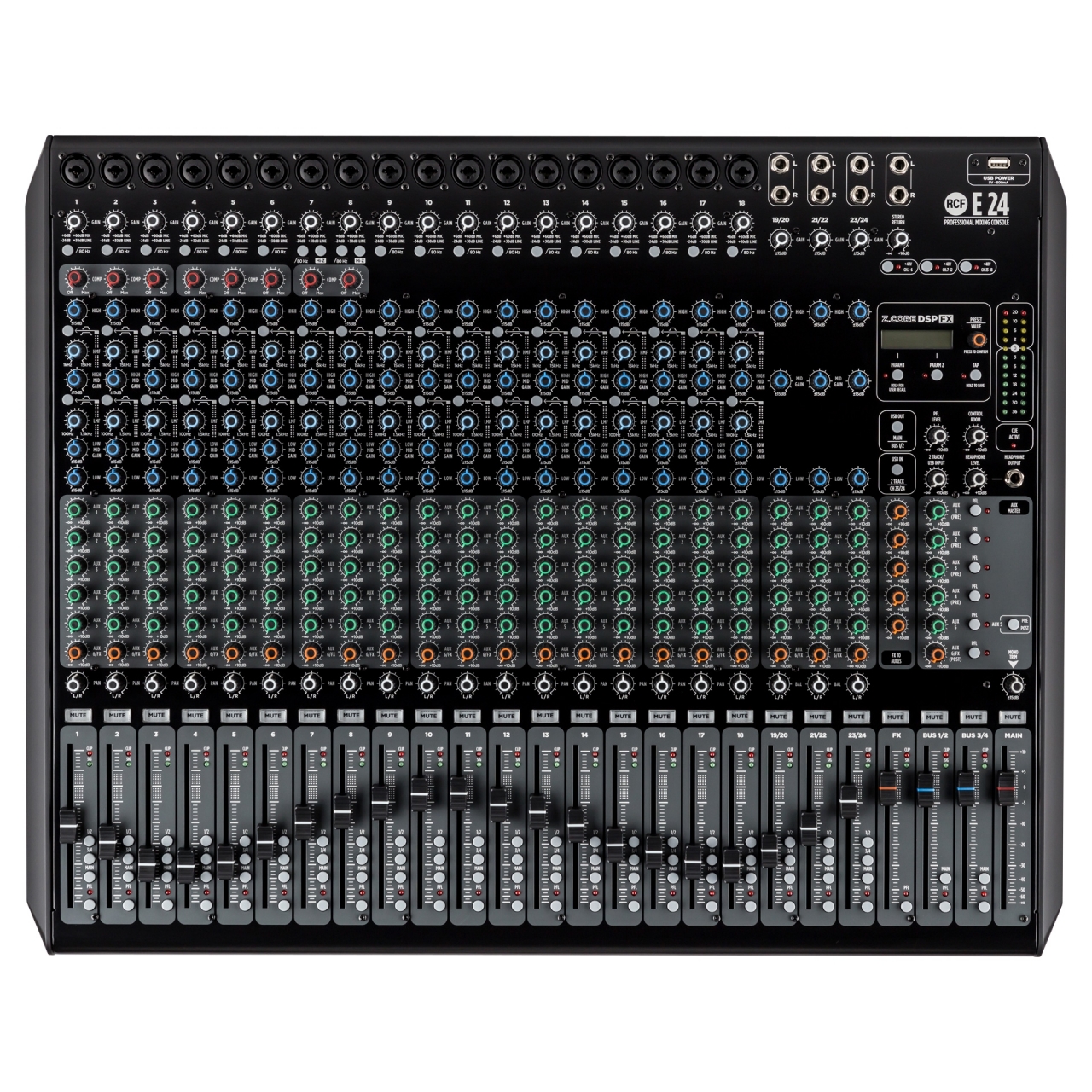

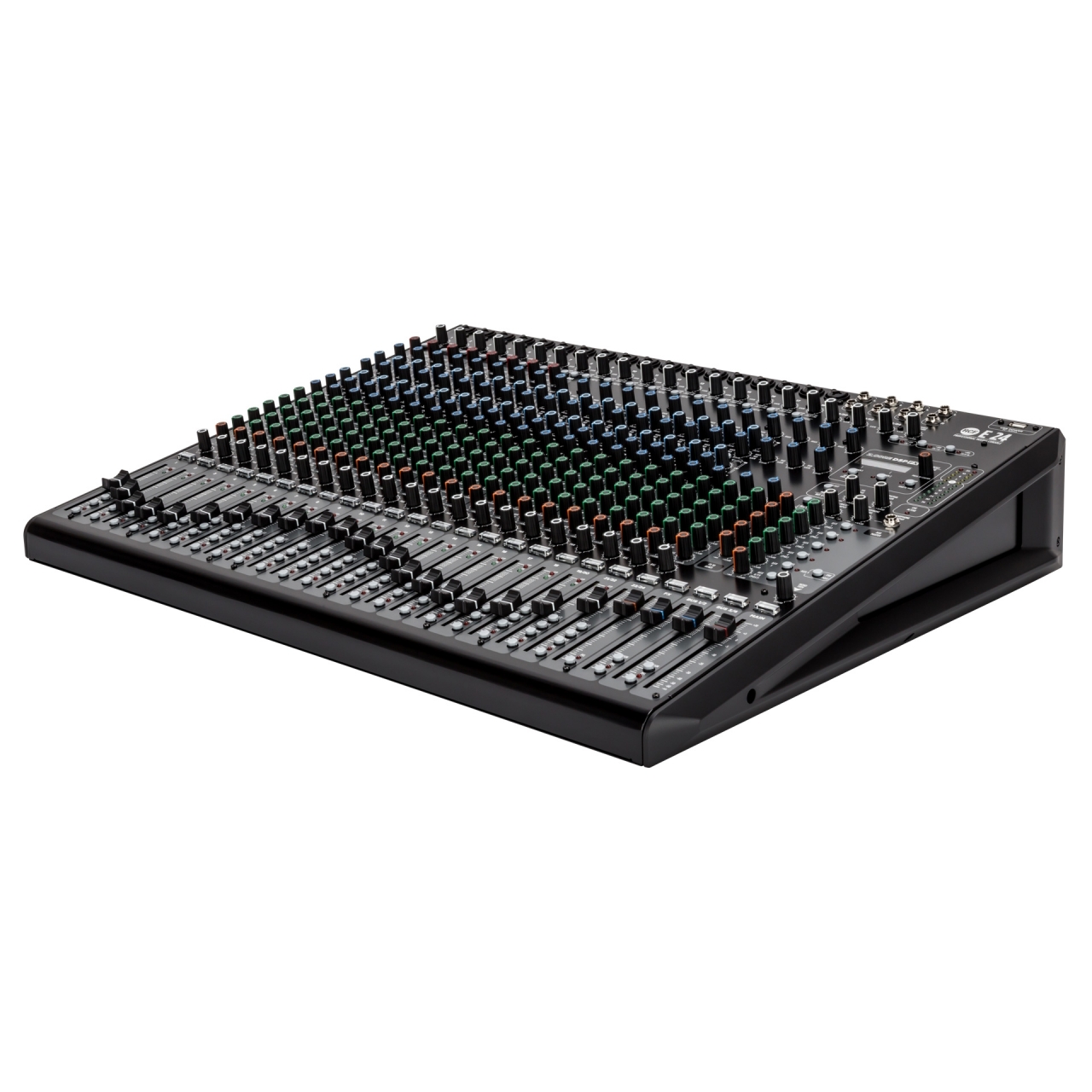

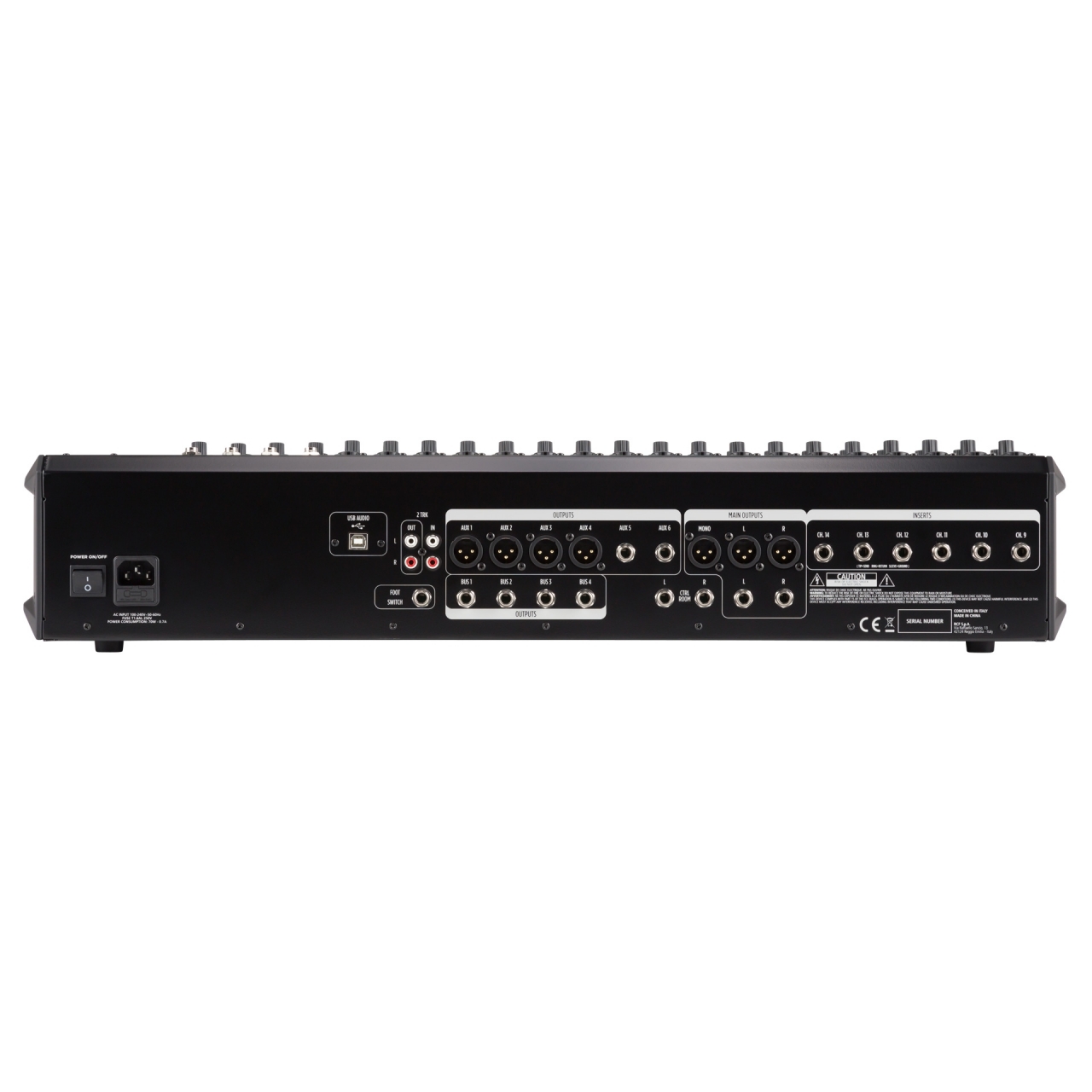

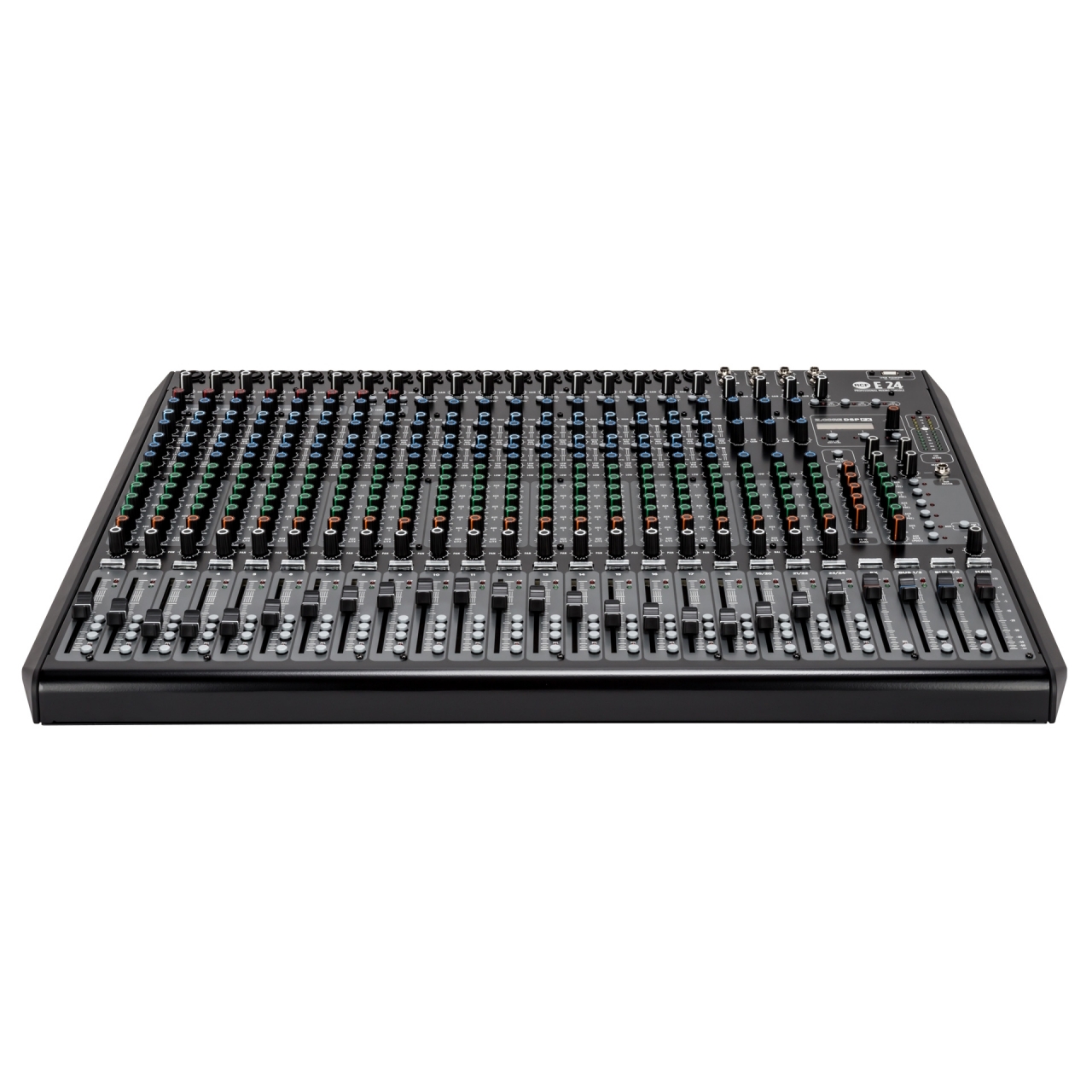

RCF – E24

The analog mixing console E 24 features eighteen studio-grade preamps with a gain range of 54 dB. Two line inputs can be switched to Hi-Z mode. The input section includes 3 stereo line inputs and one stereo return for your external effects. Channels 1 to 8 also come with a compressor.
The eighteen mono channels can be adjusted with a 3-band EQ (shelving high and low, semi-parametric mids with adjustable frequency, 2 different Q factor settings), while the stereo inputs feature a 3-band EQ.

Features:
• 18x Mic/line in, 3x stereo line IN
• 1x Stereo return
• 8x Single-control dynamic compressor (channels 1 to 4)
• 3-band semi-parametric EQ
• 8-band EQ on stereo input
• 6x Aux send on each channel
• 100 mm faders
• 2x stereo group
• 32-Bit floating-point z.core DSP effects
