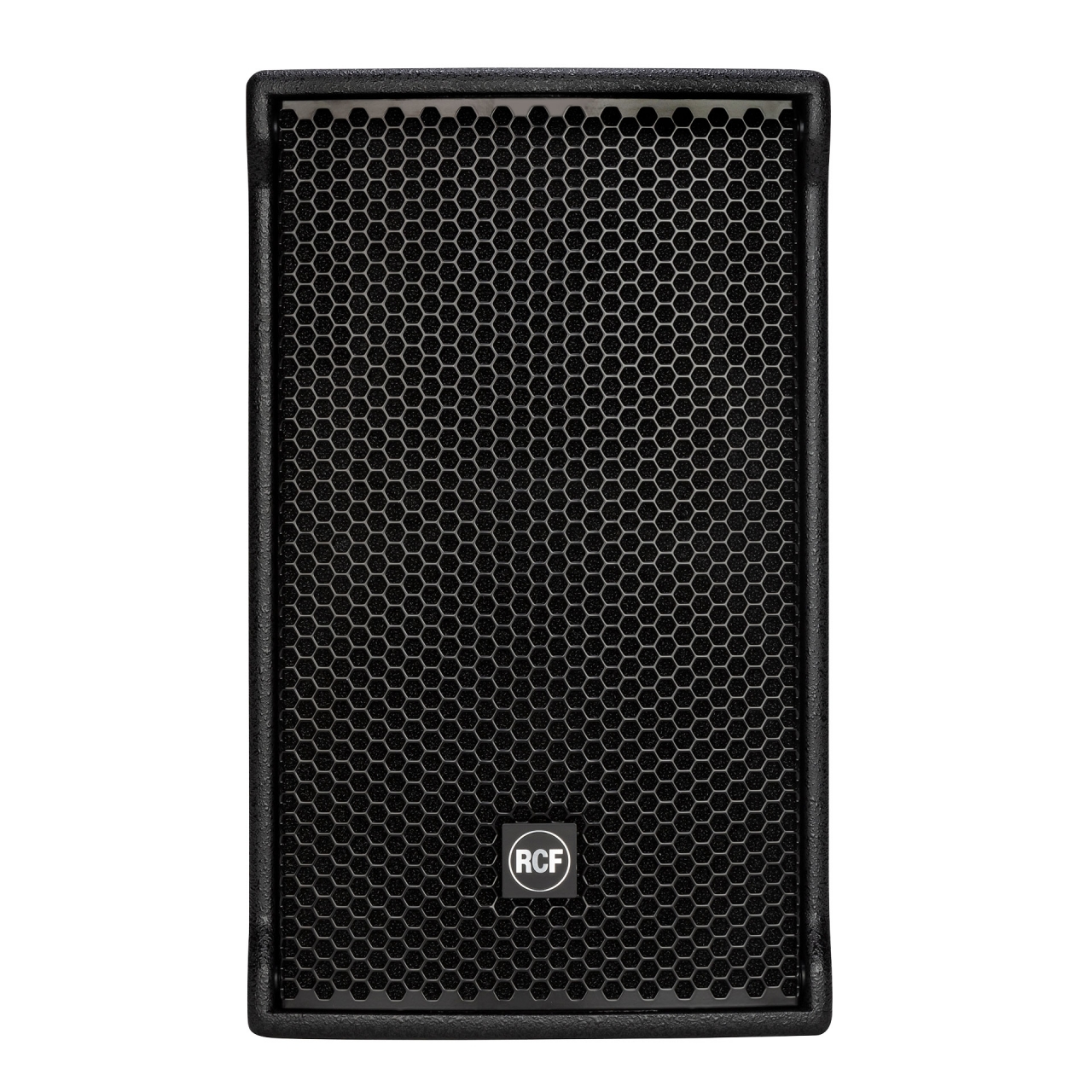

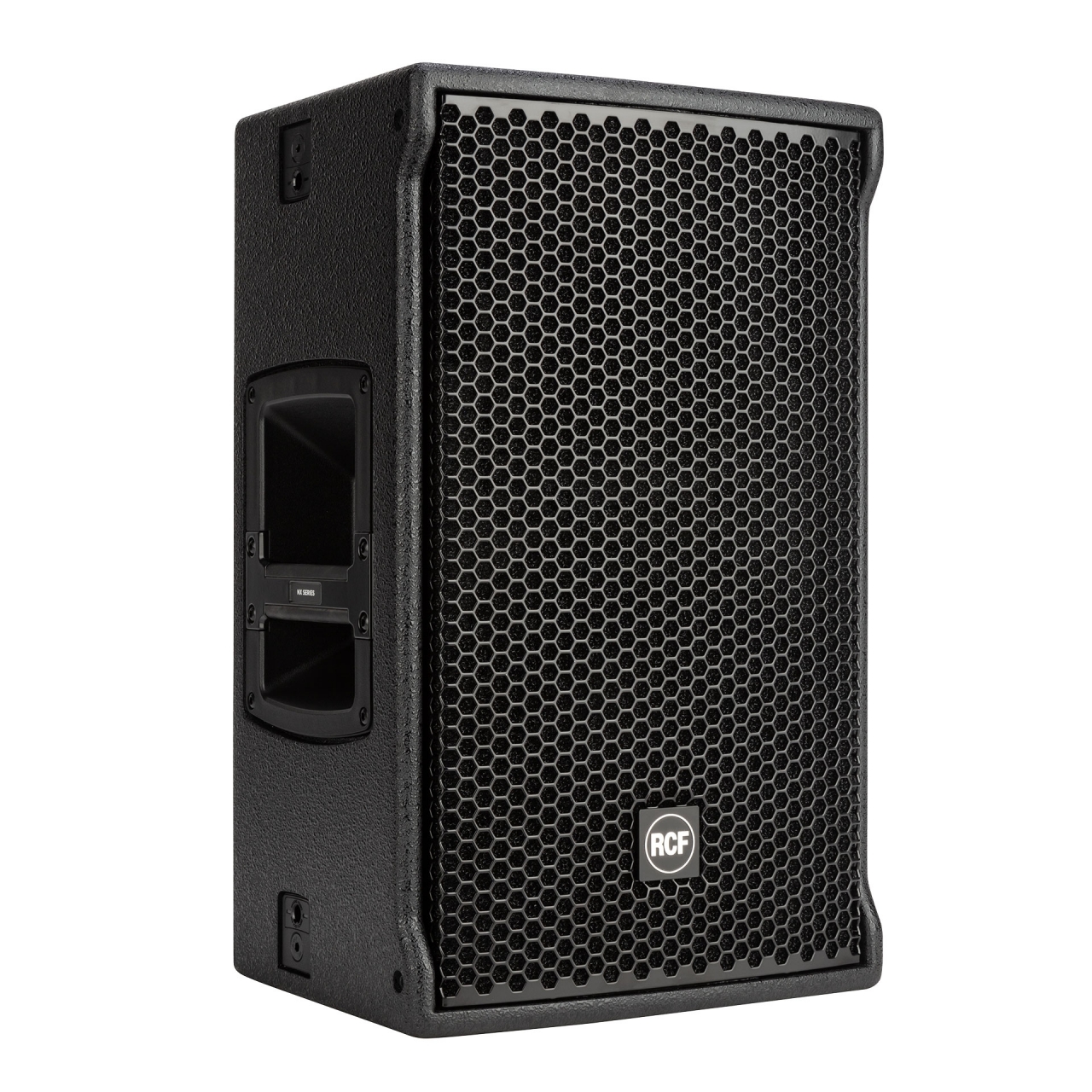

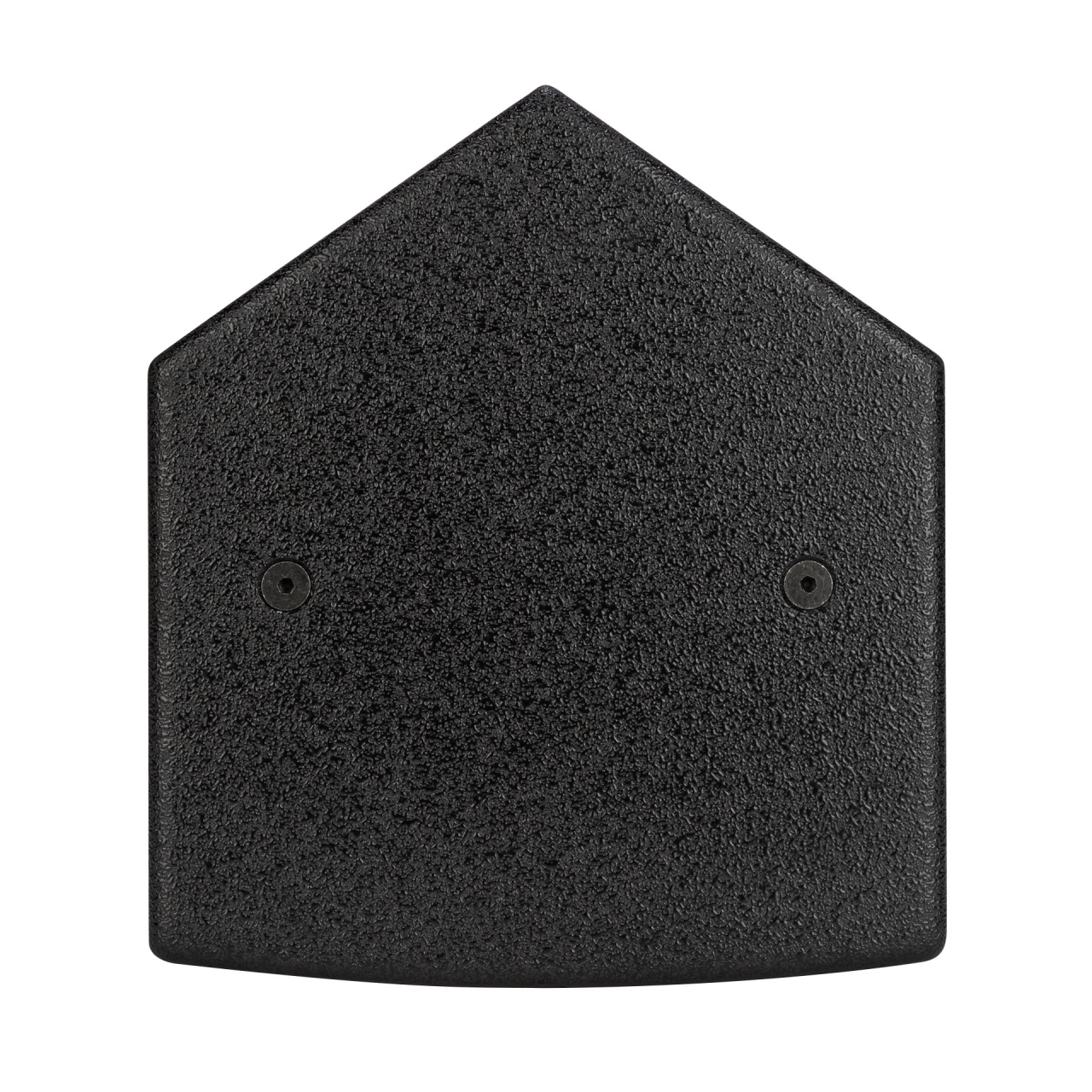

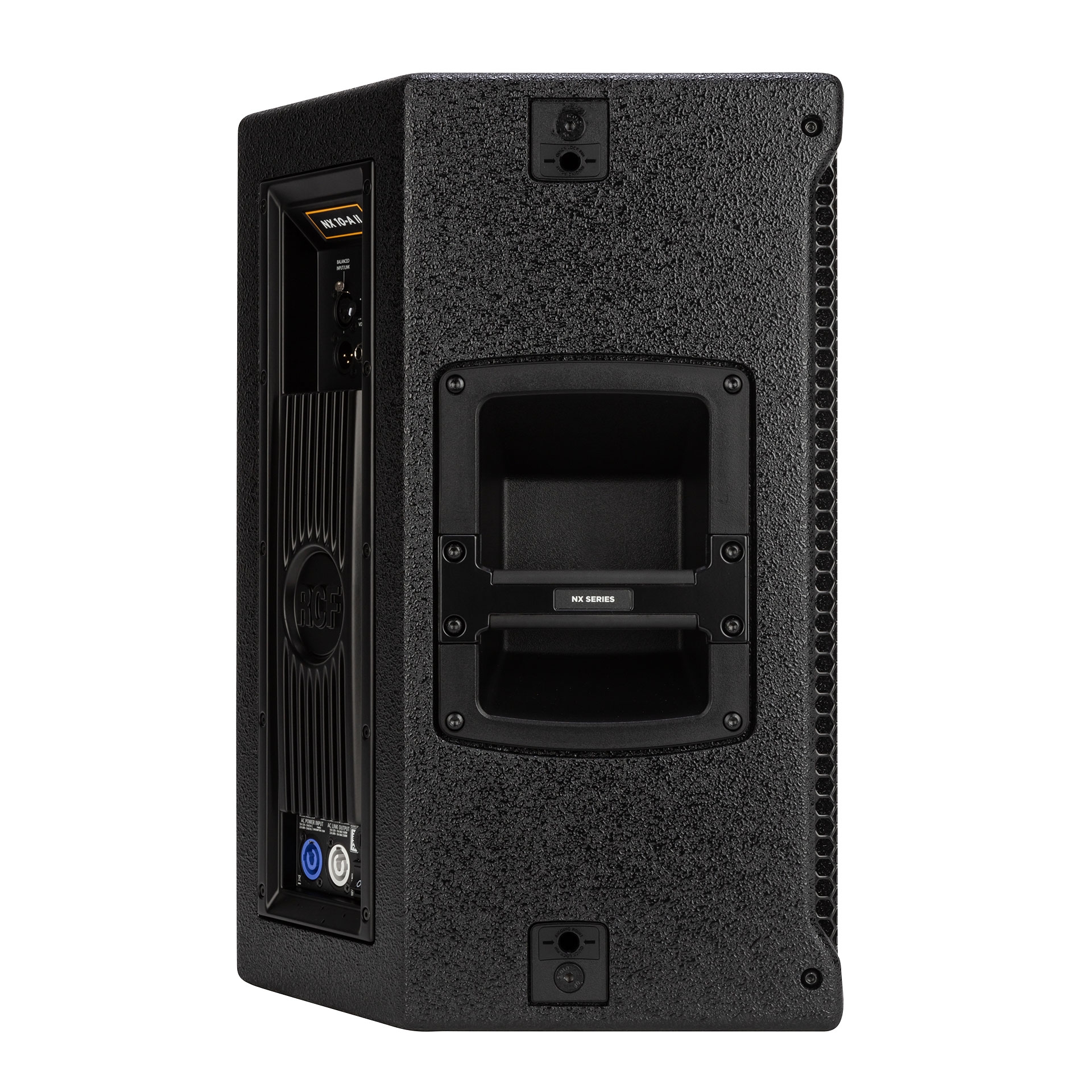

RCF – NX 10 A II

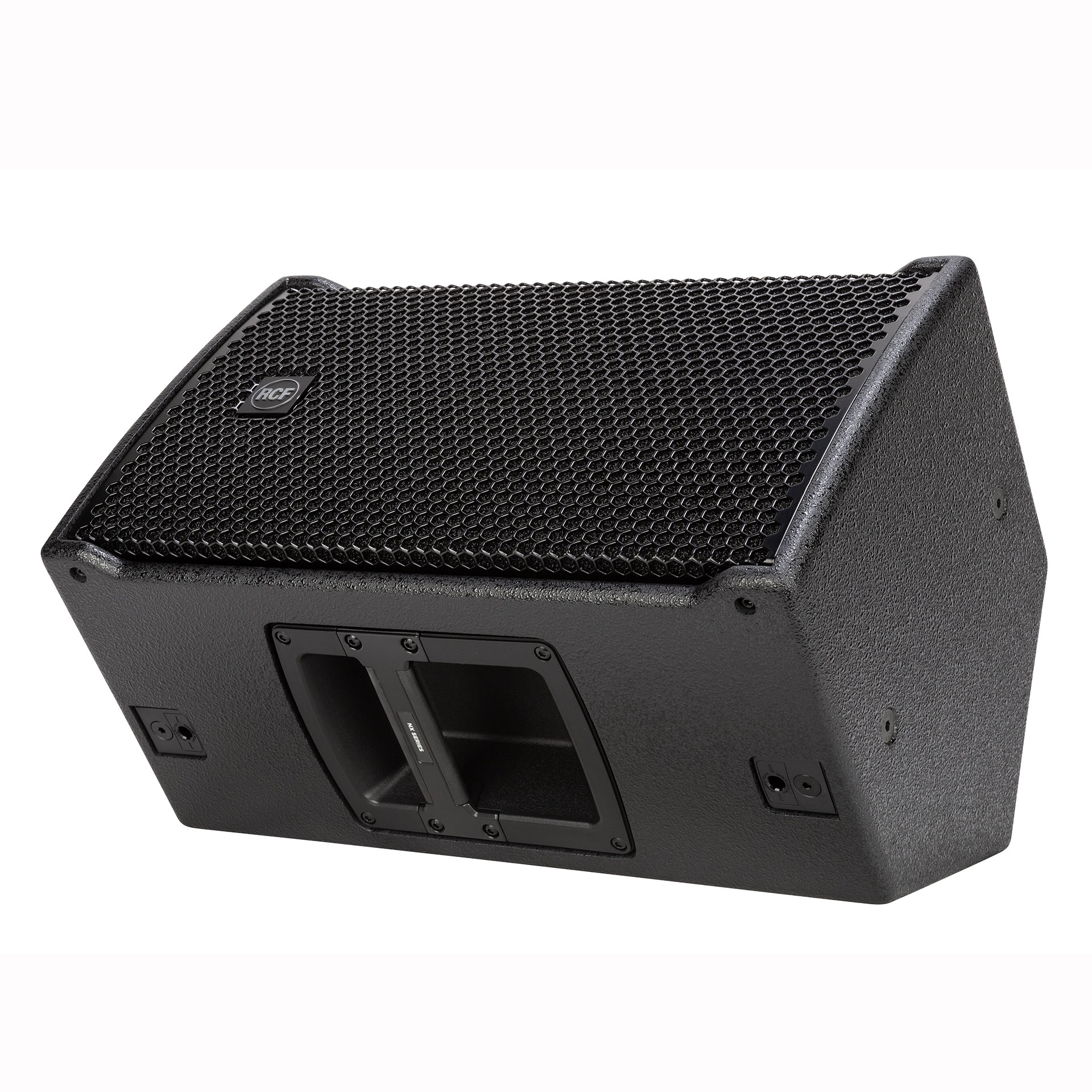

The wooden full-range speaker RCF NX10-A II is designed from the ground up for advanced users and applications that demand precise delivery. The NX10-A II can be used as a FoH system, in small PA setups (with a subwoofer), as a stage monitor, and can be hung for fixed installations. The NX 10-A II combines high reliability and a compact format, and is designed as an ideal complement to the HDL and NXL series. The frame features a variety of mounting points, FiRPHASE processing, among other features.

Features:
• Max SPL: 129 dB Max
• Built-in amplifier power: 700 W RMS
• Dispersion angle: 90° x 60°, constant directivity waveguide

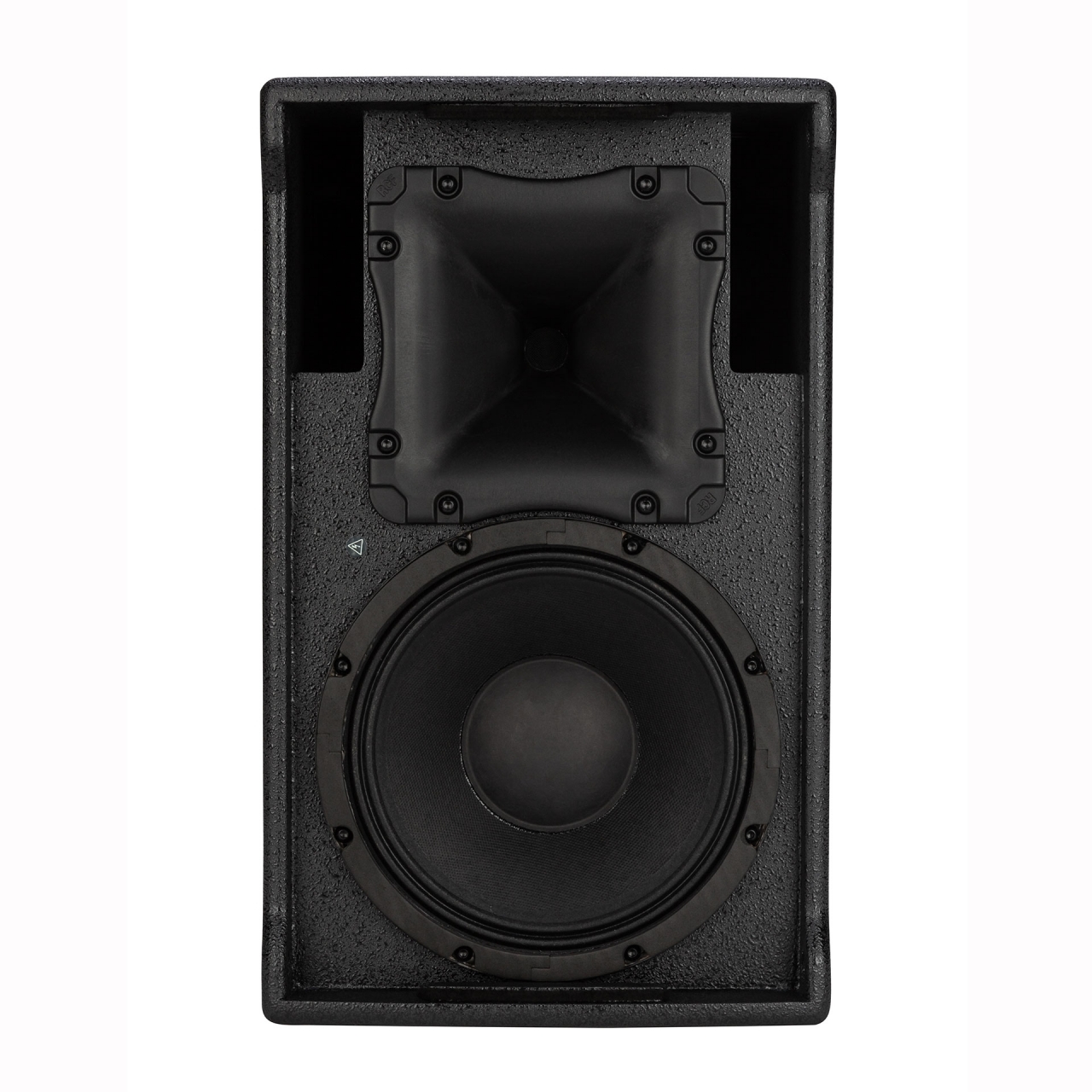

• LF: 10” woofer with 2.5” coil
• HF: 1.75” compression driver with 1” coil
• FiRPHASE
• Frequency range: 50 ÷ 20000 Hz
• Crossover frequency: 1700 Hz
• Frame material: Baltic birch
• Height: 520 mm
• Width: 315 mm
• Depth: 358 mm
• Weight: 21 kg
