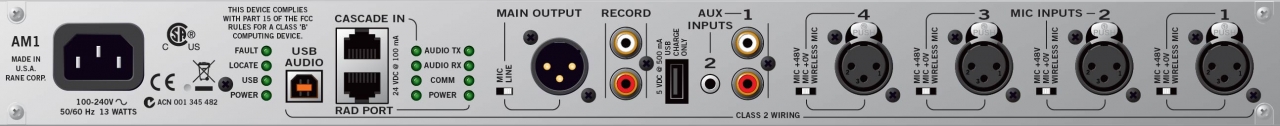

Rane AM-1 • Automatic Microphone Mixer • Manual Line Mixer • USB Audio Interface • RAD Port • Dimensions 483x216x44 (mm) • Weight 2.4 kg Rane AM-1 is an automatic microphone mixer with shared gain, manual line mixer, USB audio device, and also a Rane RAD (Remote Audio Device) device. The AM-1 can be used as a standalone microphone/line mixer. By using the automatic mixer Rane AM-2, additional microphone inputs can be added. For main mix transmission, the RAD port (CAT5 cable) can be used to connect with a Rane HAL-1 device or with a Rane Mongoose (CobraNet). Each of the four XLR microphone inputs includes an input gain control on the front panel and a three-position switch with options for dynamic microphone, condenser microphone with +48V phantom power, or for wireless receivers (+12 dBV max.). The AM-1 is optimized for automatic mixing of spoken word. The microphone inputs have a fixed band-pass filter (80 Hz - 7 kHz) for the best possible automatic mixing of human voice. The key features of the AM-1 are: Inputs: • Automatic microphone mixer with shared gain - 4x inputs with XLR connectors, level control, and signal/overload indication - microphone selection, 48V phantom power, line • Manual line mixer - overall level of all microphone inputs - two AUX inputs: dual RCA and 3.5 mm Jack - USB Audio input (16-bit, 48 kHz) • USB port for charging iPod or other USB-powered devices • Power, USB, error, localization, RAD status indicators Outputs (all mono): • Main XLR output with Microphone/Line switch, level control, and signal/overload indication • Dual RCA output for recording • Headphone output with level control (6.3 and 3.5 mm Jack) - source selection for monitoring microphones, AUX 1, AUX 2, USB input, or output • USB audio output (16-bit, 48 kHz) • Rane RAD input with RJ-45 connector for cascading devices - cascading connection of up to 7 Rane AM2 auto-mixers - RAD port for connection with Rane HAL processor or Mongoose (CobraNet) Other: • Dimensions 483x216x44 (mm) • Weight 2.4 kg
